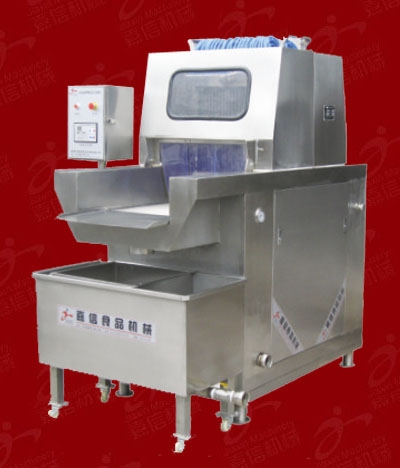

ZYZ108/144/180/240 automatic bone saline injection machine

Name：ZYZ108/144/180/240 automatic bone saline injection machine

Details
Saline injection machine is saline and accessories through a saline injection, Vacuum Tumbler, feed liquid into the meat fully pickled, penetration, loose muscle tissue structure is conducive to the dissolution of myosin, and because raw meat additives on the enhancement effect of ionic strength and features such as the role of protein adjustment. Into the preparation of the aqueous solution make meat tenderizer, soft, thereby increasing the production rate and improving meat tenderness and taste of meat
According to different process requirements, adjust the stepping speed, stepping distance, pressed meat board space and injection pressure, the continuous pickling liquid evenly into the meat, to the best injection results.

The machine made of stainless steel, the design is reasonable. Send the meat chain can come clean, easy to clean, needles arranged in a single needle single tube, with automatic protection device, when the needle hit a hard object, the needle automatically pops up, without damage, thereby achieving a meat injection no dead ends.
Model

ZYZ-108(Fish dedicated injection)

ZYZ-144

ZYZ-180(Steak special)

ZYZ-240

Production capacity

800-1000kg/h

1000-1200kg/h

1300-1500kg/h

1800-2500kg/h

Power

6.2kw

7.7kw

8.5kw

10.05kw

Injection Rate

60-90%

60-90%

60-90%

60-90%

Needle Specifications

Φ2mmΦ3mmΦ4mm

Φ2mmΦ3mmΦ4mm

Φ2mmΦ3mmΦ4mm

Φ2mmΦ3mmΦ4mm

Injection pressure

0.45-0.9Mpa

0.45-0.9Mpa

0.45-0.9Mpa

0.45-0.9Mpa

Number of injections

15-40次/min

15-40次/min

15-40次/min

15-40次/min

Stepping speed

40-70m/min

40-70m/min

40-70m/min

40-70m/min

Host size

2000x1350x1850mm

2020x1400x1900mm

2050x1450x1920mm

2300x1750x2100mm

Transmission

Variable frequency stepless

Variable frequency stepless

Variable frequency stepless

Variable frequency stepless

Weight

430kg

520kg

580kg

860kg
