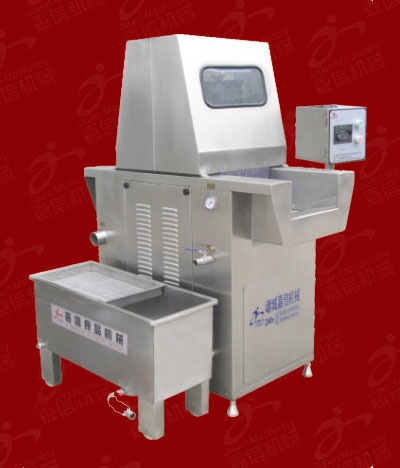

ZYZ48/80 type bone saline injection machine

Name：ZYZ48/80 type bone saline injection machine

Details
Saline injection machine is saline and accessories through a saline injection, Vacuum Tumbler, the feed liquid into the meat fully pickled, penetration, loose muscle tissue structure is conducive to the dissolution of myosin, and because raw meat additives on the enhancement effect of ionic strength and protein features such as adjustment of the role, into the preparation of the aqueous solution make meat tenderizer, soft, thereby increasing the production rate and improving meat tenderness and taste of meat Alto.
According to different process requirements, adjust the stepping speed, stepping distance, pressed meat board space and injection pressure, the continuous pickling liquid evenly into the meat, to the best injection results.

The machine made of stainless steel, the design is reasonable. Send meat chain can drag comprehensive, easy to clean, needles arranged in a single needle single tube, with automatic protection device, when the needle hit a hard object, the needle automatically pops up, than to receive damage, thereby achieving a meat injection no dead ends.

The main technical parameters:

Model

ZYZ-48

ZYZ-60

Production capacity

200-400kg/h

400-600kg/h

Power

4.1kw

4.1kw

Injection Rate

40-80%

40-80%

Needle Specifications (optional)

Φ2mm Φ3mm Φ4mm

Φ2mm Φ3mm Φ4mm

Injection pressure

0.45-0.9Mpa

0.45-0.9Mpa

Number of injections

15-40次/min

15-40次（cì）/min

Stepping speed

0.9-2m/min

0.9-2m/min

Host size

1200x950x1530mm

1620x980x1620mm

Transmission

Mechanical or infinitely variable frequency

Mechanical or infinitely variable frequency

Weight

250kg

320kg
